| Model: AIR150 |
| Illumination Distance |
150M (492ft) |
| Angle |
10° |
| LED Type |
30pcs 2W dot-matrix IR LEDs / White LEDs |
| Wavelength |
850nm (Red LEDs) / 560-570nm (White LEDs) |
| Guaranteed Life Time |
50000 Hours |
| Day & Night Switch |
Auto by camera photocell sensitivity(10-20 lux) through digital I/O |
| Power System |
| Voltage |
AC110-220V (built-in switching power adaptor) |
| Power Consumption |
37W (850nm) |
| General Structure |
| Housing |
Aluminum die-casting housing |
| Panel |
High light transmittance toughened glass |
| Color |
Black |
| Cable Length |
1.3 meter |
| Mounting |
Wall mounting “U” bracket |
| Mechanism |

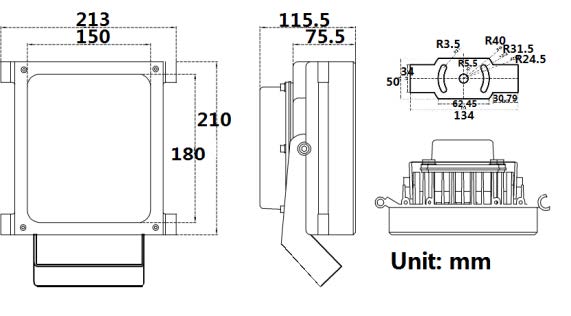

| Dimension |
213*210*115 mm |
| Weight |
3.3 kg |
| Environment |
| Operation Temperature |
-40°C ~60°C(-40°F~140°F) |
| Weatherproof Protection |
IP66 |
| Ordering Information |
| AIR150-AC-US |
External IR LEDs AC110-220 power input with US power plug |
| AIR150-AC-EU |
External IR LEDs AC110-220 power input with EU power plug |
| AIR150W-AC-US |
External White LEDs AC110-220 power input with US power plug |
| AIR150W-AC-EU |
External White LEDs AC110-220 power input with EU power plug |
