NDS293PRO
-
NDS293PRO
3MP H.265 at 30fps, 300X (30X Optical, 10X Digital) Auto Zoom Focus, 150M (492ft) IR Distance, Smart ICR, WDR, PoE+, IP66 Weatherproof, Network speed dome
Product Detail
- 3 Megapixel Sony Progressive CMOS
- Powerful 30x Optical Zoom
- Digital Zoom Support
- Wide Dynamic Range (120dB)
- Quad codec support (H.265 /H.264 Baseline / Main Profile / High Profile / MJPEG)
- Quad Streams Support
- True Day & Night (ICR)
- 2D/3D Noise Reduction
- 802.3at (PoE+) 4-Pair 60W Support for IR & Heater Activation
- Weatherproof (IP66 International)
- Servo Feedback - Improve the mechanism from stalling
- 0 downtime power switching (ZDT)
- IR Distance up to 150M(492ft)
- Electrical Image Stabilizer (EIS) Support
- ONVIF Profile S, G, Q
- Support Micro SD card slot
| Camera: NDS293PRO | |||
| Image Sensor | 1/2.8" Sony Progressive CMOS | ||
| Effective Pixels | 2065(H) x 1553(V) | ||
| Minimum Illumination | 0.04 lux (Color), 0.01 lux (B/W) | ||
| Lens | |||
| Focal Length | 4.3-129 mm, P-Iris | ||
| F Number | F 1.6 (Wide); F 4.7 (Tele) | ||
| FOV | Horizontal: 62ﾟ(Wide); 2ﾟ(Tele); Vertical: 47ﾟ(Wide); 2ﾟ(Tele) | ||
| Optical Zoom | 30X | ||
| Digital Zoom | 10X | ||
| IR | |||
| IR Distance | 150M(492ft) | ||
| Image Setting | |||
| Wide Dynamic Range | Multi Shutter(Up to 3 Shutter) WDR 120 dB; Off/ Low/Mid/ High | ||
| White Balance | Auto / Indoor / Outdoor / ATW / Manual | ||
| Iris Control | Auto / level 1-10 | ||
| Shutter Speed | 1/1.5 ~ 1/10000 sec. | ||
| Gain Control | Level 1-3/ Auto | ||
| Backlight Compensation | On / Off | ||
| Analog output | Yes, always on | ||
| Text Overlay | Date & Time/ Text String/ Subtitle/ Image/ Azimuth | ||
| Day / Night | Auto/ Night/ Day/ Light Sensor Day/ Night Switch Threshold: level 1-10(illumination) / Smart/ Schedule) |
||
| ICR Day/ Night | On/ Off | ||
| IR Light Compensation | Yes | ||
| Smart Schedule Profile | Multiple schedule applied to one camera configuration profile or Event management Support up to 10 sets of schedules: Day/ Night/ Manual (Start Time, Duration) 10 Profiles (Configurable: Shutter Speed, Exposure, Gain, Wide Dynamic Range, Noise Reduction, White Balance, Backlight Compensation, Picture Adjustment) |
||
| Picture Adjustment | Brightness/Sharpness/Contrast/Saturation/Hue | ||
| Rotate Function | Mirror/ 90⁰/ 180⁰/ 270⁰ rotation | ||
| Digital Noise Reduction | 3DNR: Low/ Mid/ High; 2DNR: On/ Off; ColorNR: Low/ Mid/ High | ||
| Operation | |||
| Multiple Languages | English/French/German/Italian/Simplified Chinese/Traditional Chinese/Russian/Spanish/ Japanese/ Portuguese | ||
| Pan Travel | 360° endless | ||
| Tilt Travel | -20° ~ 100° | ||
| Speed by Zoom | Pan :0.1° ~ 90°/s; Tilt :0.1° ~ 60°/s | ||
| Presets | 256 | ||
| Preset Accuracy | 0.225° | ||
| Preset Speed | Pan: 5° ~ 400°/s Tilt: 5° ~ 300°/s 1-10 level |
||
| Sequence | Sequence line: 8 (max 64 preset for each line); dwell time: 0~127s; speed: 0~14° | ||
| Auto Pan | Auto Pan path: 1~4; speed: 0~3 level | ||
| Cruise | 8 | ||
| Privacy Mask | 20 (Polygon Support) | ||
| Proportional Pan & Tilt | Yes | ||
| Resume after Power loss | 0 downtime power switching (ZDT) support | ||
| Home Function | Line: 1~8; Preset / Sequence / Auto pan / Cruise; time: 1~128mins | ||
| Electronic Image Stabilization | On/ Off | ||
| Auto Flip | Mechanical / Off | ||
| Set pan zero | Yes | ||
| Auto Calibration | On / Off, Servo Feedback Support | ||
| Audio | |||
| Transmission Mode | Full-duplex (Talk and Listen simultaneously)/ Half-duplex (Talk or Listen, not at the same time)/ Simplex (Talk only)/Simplex (Listen only)/ Disable | ||
| Audio Bit rat | 16 kbps/ 24 kbps/ 32 kbps, 40 kbps/ uLAW (64 kbps)/ ALAW (64 kbps)/ AAC (128 kbps)/ PCM (128 kbps)/ PCM (256 kbps), PCM (384 kbps)/ and PCM (768 kbps) | ||
| Recording to Storage | Yes | ||
| Event | |||
| Alarm Detection(Application) | On/ Off/ Schedule; | ||
| Motion Detection | Motion Detection Window x 4 sets | ||
| Audio Detection | Detection level: 1-100; Time interval (sec): 0-7200 | ||
| Network Loss Detection | On/ Off/ Schedule; Ping IP time setting: 1-99 minutes | ||
| Event Triggers | Motion Detection, Audio Detection, Network Failure Detection; Alarm Detection(Application); Periodical Event; Manual Trigger |
||
| Event Action | Enable Alarm Output Send Message by FTP/E-Mail Upload Image by FTP Upload Image by E-Mail Send HTTP Notification Record Video Clip PTZ Function (perform: Preset/ Sequence/ Autopan/ Cruise on the specific Function Line) |
||
| Network | |||
| Interface | RJ-45, 1Gbps Ethernet | ||
| Protocol | ARP,PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS | ||
| Security | HTTPS / IP Filter / IEEE 802.1x | ||
| Supported Web Browser | Internet Explorer (10.0+) / Firefox / Safari | ||
| User | user account: 20; level: user/administrator | ||
| ONVIF | Profile S / G / Q conformant | ||
| Video Codec | |||
| Video Compression | H.265/H.264/MJPEG | ||
| Video Resolution | H.265/ H.264: 3M (2048x1536) / Full HD 1080P / SXGA/ 720P / XGA / SVGA / D1 / VGA / CIF MJPEG: Full HD 1080P / SXGA / HD 720P / XGA / SVGA / D1 / VGA / CIF |
||
| General | |||
| SD Card | Micro SDHC support up to 128GB | ||
| Environment | Outdoor | ||
| Operating Temperature | -40⁰C~50⁰C (-40⁰F~122⁰F) with heater | ||
| Humidity | 10% ~ 90%, No Condensation | ||
| Dimension | ∅ 207.43 x 300.39 mm with Sunshield | ||
| Weight | 3.8 kg | ||
| Power Source | 802.3at (PoE+) 4-Pair 60W / AC 24V ± 20% / DC 12V | ||
| Power Consumption | 44.5W (with IR & Heater on) | ||
| Regulatory | CE / FCC / RoHS / IP66 | ||
| Ordering Information | NDS293 PRO | ||

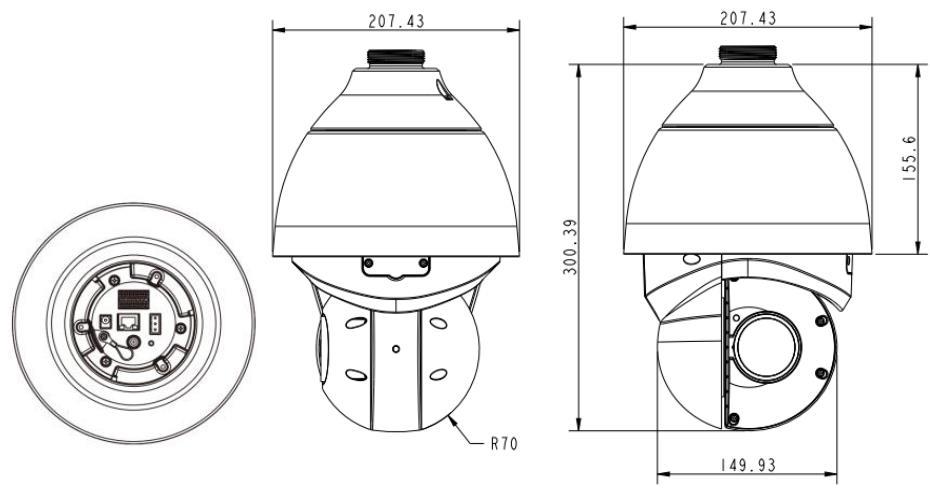

Dimension Drawing
