NFF271
-
NFF271
Single sensors, 360º Fisheye view,
6 Megapixels Resolution at 30 fps, WDR,
5M (15ft) IR Distance, ICR D/N, Compact
Elegant Design, IK10 Vandal Resistant,
IP66 Weatherproof, Fisheye Network
Camera
Product Detail
- 1/1.8” Sony Progressive Scan CMOS Sensor
- Up to 6MP Resolution at 30 fps; Full HD 1080P at 60 fps
- 1/2" Fisheye Lens, 1.55 mm, F2.0
- IR Illuminator up to 5 Meters (16 ft)
- Smart ICR Function Removable IR Filter for Day and Night
- Edge Dewarping (which can reduce the workload of the backend system) and Software Dewarping
- Multiple Display Modes: Digital PTZ, Panoramic View, Quad View
- Quad Streams Compression: H.264 (Baseline/Main/High Profile), MJPEG
- Smart Event Functions: Audio Detection, Motion Detection, Network Failure Detection, Tampering Alarm
- Digital Wide Dynamic Range
- 2D/3D/Color Noise Reduction
- Region of Interest (ROI)
- IP66 Weatherproof
- IK10 Vandalproof
- Compact, Elegant Design
- Micro SD Card, NAS Recording
- Audio I/O, Alarm I/O
- Supports ONVIF Protocol
| Camera: NFF271 | |
| Image Sensor | 1/1.8” Sony Progressive CMOS |
| Coverage | 6MP |
| Minimum Illumination | Color: 0.04 lux.; B/W: 0.002 lux. |
| Lens | |
| Lens Type | 1/2" Fisheye Lens |
| Focal Length | 1.55 mm |
| F number | F2.0 |
| FOV | 185° |
| Image Setting | |
| Backlight Compensation | On/Off |
| White Balance | Manual/AWB/ATW/One Push |
| Noise Reduction | 3DNR/2DNR/ColorNR |
| Wide Dynamic Range | Digital WDR |
| Privacy Mask | On/Off |
| Picture Adjustment | Brightness, Sharpness, Contrast, Saturation, Hue (Manual Setting) |
| Exposure | Auto/Manual |
| ICR Day/Night | Auto/LED On/LED Off/Smart IR/Light Sensor |
| Shutter Speed | 1 ~ 1/10,000 K sec. |
| Event Setting | |
| Motion Detection | By Schedule/On/Off |
| Tampering Alarm | By Schedule/On/Off |
| Network Failure | By Schedule/On/Off |
| Audio Detection | On/Off |
| Video | |
| Compression/Streaming | MJPEG/H.264 (Edge dewarping: dual streaming; SW dewarping: quad streaming) |
| Video Resolution | Edge Dewarping: (up to 30 fps) H.264 - 2048x2048, 2688x1520, 2048x1536, 1920x1080, 1600x1200, 1408x1408, 960x960, 960x720, 960x554 MJPEG - 1920x1080, 1600x1200, 1408x1408, 960x960, 960x720, 960x554 SW Dewarping: (up to 60 fps) H.264 - 6M (3072 x 2048), Full HD 1080P (1920 x 1080), SXGA (1280 x 960), HD 720P (1280 x 720), XGA (1024 x 768), SVGA (800 x 600), D1 (720 x 480), VGA (640 x 480), CIF (352 x 240), QVGA (320 x 240) MJPEG - Full HD 1080P (1920 x 1080), SXGA (1280 x 960), HD 720P (1280 x 720), XGA (1024 x 768), SVGA (800 x 600), D1 (720 x 480), VGA (640 x 480), CIF (352 x 240), QVGA (320 x 240) |
| Audio | |
| Audio Type | Two-way audio (Line in/Line out) |
| Compression | G.711/G.726/AAC/LPCM |
| Network | |
| Interface | RJ-45, 1Gbps Ethernet |
| Protocols | ARP, IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF |
| Supported Web Browser | Internet Explorer (6.0+), Chrome, Firefox, Safari |
| Security | HTTPS, IP Filter, IEEE 802.1X, 20 user accounts, password level: user & administrator |
| Event Notification | HTTP, FTP, SMTP |
| General | |
| IR Illuminator | 5 meters/16 ft (4 pcs of LED, 850nm wavelength) |
| Operating Temperature | -10°C to 50°C (14° to 122° F) |
| Humidity | 10% to 90%, No Condensation |
| Weather Proof | IP66 |
| Vandal Proof | IK10 |
| Alarm | 4 pin terminal block |
| Micro SD Card | microSDXC 64GB |
| Power | DC12V: 8.1W; PoE (IEEE802.3af): 7.1W (IR: +1.9W) |
| Language | English, French, German, Italian, Korean, Simplified Chinese, Traditional Chinese, Russian, Portuguese, Japanese, Spanish |
| Dimension | ∅ 117 x 42.7 mm (∅ 4.6 x 1.68 in.) |
| Weight | 330g (0.73 lb) |
| Regulatory | CE/FCC/RoHS |

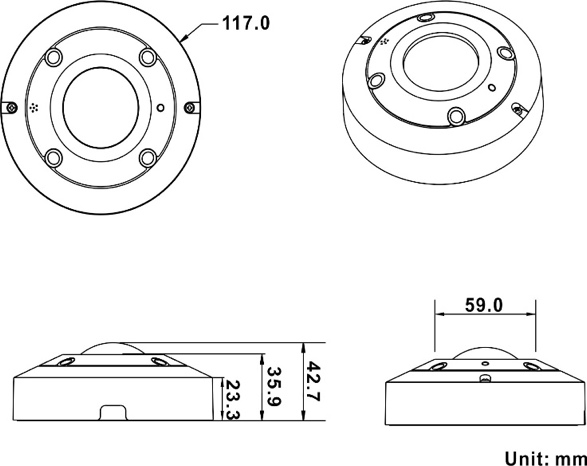

Dimension Drawing
