NDS285PRO
-
NDS285PRO
2MP H.265 at 30fps, 300X (30X Optical, 10X Digital)
Auto Zoom Focus, Smart ICR, Extreme WDR,
PoE+, Network Speed Dome
Product Detail
- 2-Megapixel 1/2.8” SONY Progressive Scan CMOS Sensor
- 2-Megapixel Resolution @ 60 fps Real-Time
- H.265/H.264 /MJPEG Compression
- Quad streaming support/Low Latency Streaming
- Electrical Image Stabilizer(EIS) support
- 300X (30X Optical Lens, 10X Digital Lens) Auto Zoom Focus
- 256 presets, High speed up to 4000/sec, 360° endless
- Smart Filtering Function Removable IR-cut Filter for Day and Night
- Extreme Wide Dynamic Range (WDR)
- 3D Noise Reduction
- ROI (Region of Interest) with Multi Cropping
- Servo Feedback-Guarantees no stalling
- Zero-Down-Time(ZDT) Power Switching
- Text Overlay and Privacy Mask
- Tampering Alarm /Motion/Network Failure Detection
| Camera: NDS285PRO | |
| Image Sensor | 1/2.8" Sony Progressive CMOS |
| Effective Pixels | 1945 (H) x 1097 (V) |
| Minimum Illumination | 0.02 lux (Color); 0.005 lux (B/W) @F1.6 |
| Lens | |
| Focal Length | 1.2 ~129 mm, P-iris |
| F Number | F1.6 (Wide); F4.7(Tele) |
| Field Of View | H: 67°(Wdie);2°(Tele); V: 38°(Wdie); 1°(Tele) |
| Optical Zoom | 30X |
| Digital Zoom | 10X |
| Image Setting | |
| Wide Dynamic Range | Shutter WDR (Up to 120 dB) |
| White Balance | Auto/One Push/ATW/Manual |
| Shutter Speed | 1/1.5 ~1/10,000 sec. |
| Iris Control | Auto/ level 1-10 |
| Gain Control | Level 1-3 / Auto |
| Backlight Compensation | On/Off |
| Analog output | Yes, Always on |
| Text Overlay | Date & Time/ Text String/ Subtitle/ Image/ Azimuth |
| Day/ Night | Auto/ Night/ Day/ Light sensor (Day/ Night Switch Threshold: level 1-10 (illumination)/ Smart/ Schedule |
| IR Light Compensation | Yes |
| Smart Schedule Profile | Multiple schedule applied to one camera configuration profile or Event management Support up to 10 sets of schedule: Day/ Night/ Manual (Start Time, Duration) 10 Profiles (Configurable: Shutter Speed, Exposure, Gain, Wide Dynamic Range, Noise Reduction, White Balance, Backlight Compensation, Picture Adjustment: Brightness/Sharpness/Contrast/Saturation/Hue) |
| Rotate Function | Mirror/ 90⁰/ 180⁰/ 270⁰ rotation |
| Digital Noise Reduction | 3DNR: Low/ Mid/ High; 2DNR: On/ Off; ColorNR: Low/ Mid/ High |
| Operation | |
| Multiple Languages | English/French/German/Italian/Simplified Chinese/Traditional Chinese/Russian/Spanish/ Japanese/ Portuguese |
| Pan Travel | 360° endless |
| Tilt Travel | -20° ~ 100° |
| Speed by Zoom | Pan: 0.1° ~ 90°/s , Tilt: 0.1° ~ 60°/s |
| Presets | 256 |
| Preset Accuracy | 0.225° |
| Preset Speed | Pan: 5° ~ 400°/s Tilt: 5° ~ 300°/s |
| Sequence | 8 |
| Auto Pan | 4 |
| Cruise | 8 |
| Privacy Mask | 20 |
| Proportional Pan & Tilt | Yes |
| Resume after Power loss | Yes |
| Home Function | Time: 1-128min; Preset/Sequence/Auto Pan/Pattern |
| Electronic Image Stabilization | On/ Off |
| Auto Flip | Image/Mechanical /Off |
| Set pan zero | Yes |
| Audio | |
| Transmission Mode | Full-duplex (Talk and Listen simultaneously)/ Half-duplex (Talk or Listen, not at the same time)/ Simplex (Talk only)/ Simplex (Listen only)/ Disable |
| Audio Bit rate | 16 kbps/ 24 kbps/ 32 kbps, 40 kbps/ uLAW (64 kbps)/ ALAW (64 kbps)/ AAC (128 kbps)/ PCM (128 kbps)/ PCM (256 kbps), PCM (384 kbps)/ and PCM (768 kbps) |
| Recording to Storage | Yes |
| Event | |
| Motion Detection | Motion detection window x 4 set |
| Audio Detection | Detection level: 1-100; Time interval (sec): 0-7200 |
| Event Triggers | Motion Detection, Audio Detection, Network Failure Detection |
| Event Action | Enable Alarm Output Send Message by FTP/E-Mail Upload Image by FTP Upload Image by E-Mail Send HTTP Notification Record Video Clip PTZ Function (perform: Preset/ Sequence/ Autopan/ Cruise on the specific Function Line) |
| Network | |
| Networking | RJ-45, 10/100 Mb Ethernet |
| Protocol | ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS |
| Security | HTTPS/IP Filter/IEEE 802.1x; user account: 20; level: user/administrator |
| Supported Web Browser | Internet Explorer (10.0+)/Firefox/ Safari |
| ONVIF | Profile S / G / Q conformant |
| Video Codec | |
| Video Compression | H.265/H.264/MJPEG |
| Video Resolution | H.265/H.264 - Full HD 1080P/1280 x 960/SXGA/HD 720P/XGA/SVGA/D1/VGA/CIF MJPEG - Full HD 1080P/SXGA/HD 720P/XGA/SVGA/D1/VGA/CIF |
| General | |
| Audio | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, IEEE 802.1x, QoS, ONVIF, ARP |
| Alarm in/out | Yes |
| Security | HTTPS / IP Filter / IEEE 802.1x; user account: 20; level: user/administrator |
| Micro SD | Micro SDXC 32GB support |
| Supported Web Browser | Internet Explorer (6.0+) / Chrome / Firefox / Safari |
| General | |
| Audio | G.711/G.726/AAC/LPCM, Two way audio(Line-in/-out), Terminal Block |
| Alarm in/out | 4-in(5V 10KΩ pull up) /2-out (Relay output: Max. 120mA DC 400V / 120mA AC 250V) |
| Alarm Reaction | Preset / Sequence / Auto Pan / Cruise |
| SD Card | SDXC up to 128GB support |
| Connector | RJ4, Alarm Terminal Block (in x4,out x2), DC12V Terminal Block, AC24V Terminal Block, Audio Terminal Block(inx1, outx1) CVBS Connector, RS485 Terminal Block |
| Waterproof/Vandal proof | IP66/IK10(Vandal resistant polycarbonate) |
| Operating Temperature | -25⁰C~50⁰C (-13⁰F~122⁰F) -40°C~50°C (-40°F~122°F) with Heater |
| Dimension | ø 210mm × 279 mm (ø 8.27”×10.98”) with Sunshield |
| Weight | 2.9kg (6.39lbs) with Sunshield |
| Power Source | 802.3 at PoE+ (30W)/ AC 24V ± 10%/ DC 12V (ZDT PoE+ and DC12V only) |
| Power Consumption | 25.4W |
| Regulatory | Outdoor: CE/FCC/RoHS/IP66/IK10/ LVD |
| Ordering information |
NDS285PRO Accessories: refer to the next page |

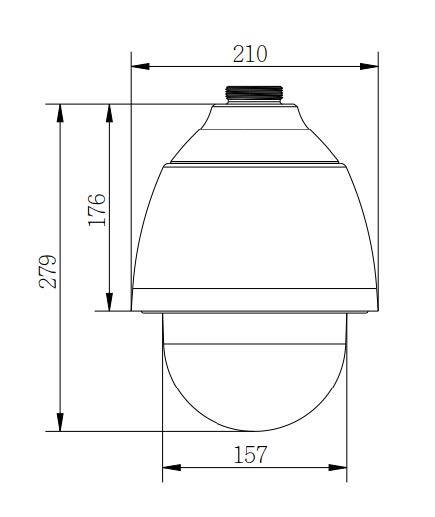

Dimension Drawing
