NFP820
-
NFP820
Four sensors, 180º panoramic overview,
8MP Resolution, one camera and one IP
address, Excellent light sensitivity and WDR –
Forensic Capture, 30M (98ft) IR Distance,
IK10 Vandal Resistant, IP66 Weatherproof
Product Detail
- 180º panoramic overview
- 8MP, 4 sensors 1/2.7” 2MP CMOS progressive sensor
- 2-Megapixel (1920x1080) @ 30 fps
- Triple Streaming :H.265/H.264/MJPEG
- 4 Fixed Lens, fixed focus, 6.0 mm, F2.0
- IR Illuminator: 30M (98ft) IR Distance
- Smart IR, Multi Shutter WDR, Sync Brightness
- IK10 Vandal Resistant
- IP66 Weatherproof
- Extreme Weather -40°C~60°C ( -40°F~140°F)
- ONVIF Support
| Camera: NFP820 | |
| Image Sensor | 8MP, 4 sensors, 1/2.7” 2MP CMOS progressive sensor |
| Coverage | 180º |
| Minimum Illumination | Color: 0.1 lux.; B/W: 0 lux. |
| Shutter Speed | 1/3.75~1/10000 sec. |
| Camera angle adjustment | Pan 355°, Tilt 0°~90° |
| ICR Day/ Night | Auto/ Force Day/ Force Night |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Mirror, Flip |
| Lens | |
| Lens Type | 4 Fixed Lens, fixed focus, 6.0 mm, F2.0 Combined horizontal angle of view: 180° |
| Focal Length | 6.0mm, F2.0 |
| Video | |
| Compression | H.265/ H.264/ MJPEG |
| Streaming | Triple Streaming |
| Video Quality | VBR/CBR |
| Resolution | 4x(1920x1080 to 640x360) |
| Frame Rate | 4x1920x1080, up to 30 fps |
| Event Management | |
| Event Trigger | Motion Detection 5x5 areas, Tampering Alarm |
| Notifications | Send messages via e-mail or FTP, record JPG/AVI |
| Network | |
| Interface | 10/100 Mbps Ethernet, RJ-45 |
| Protocol | TCP/IP, UDP, ICMP, IPv4, IPv6, SNMP v2c/ v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, DynDNS , Zero Configure |
| Users | Live Viewing/Administrator for up to 10 clients |
| Browsers | Internet Explorer, Google chrome, Mozilla Firefox |
| Connectivity | ONVIF Profile S,Q,G |
| General | |
| IR Illuminator | Up to 30M (98ft) |
| IR Control | Smart IR |
| IR LED | 8pcs |
| Application | SDK available for application development |
| Weather Proof | IP66 |
| Vandal Resistant | IK10 |
| Operating Weather | -40°C~60°C (-40°F~140°F) |
| Humidity | 90%RH (No Condensation) |
| Power Source | PoE+ (IEEE 802.3at), DC 12V/AC 24V |
| Dimension | Φ 196mm x 188.4mm(H) |
| Weight | 1600g |
| Regulatory | CE/FCC |
Dimension Drawing

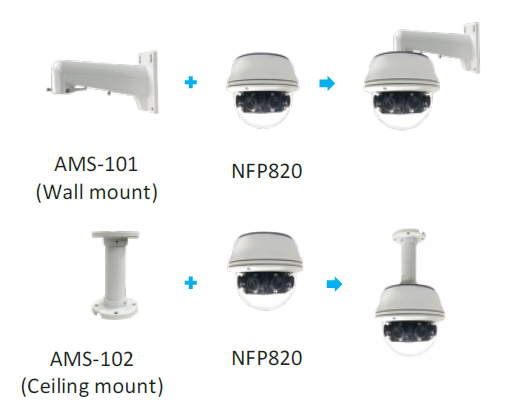

Accessories (Optional)
Documents
| Item | Type | Version | |
| Datasheet_NFP820 | 20170427 | Download |
Firmware
| Item | Type | Version |
Software
| Item | Type | Version |
